1ton 2ton 3ton 5ton 8ton 10ton Industrial Ice Making Machine with R404a/R22 Refrigerant

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert

Condition : New

Place of Origin : Jiangsu, China

Ice Shape : tube ice

Voltage : 220v~440v

Power : 4.74kw

Weight : 1000 KG

Warranty : 1 Year

Key Selling Points : Easy to Operate

Ice storage capacity : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : PLC, compressor, condenser, evaporator

Compressor brand : Bitzer, Danfoss

Application : Industrial

Product name : Ice Maker

Keyword : ice

Power supply : 3P/220V-440V/50Hz/60Hz(Optional)

Cooling way : Air Cooling Water Cooling

Ice size : 22mm/28mm/29mm

Refrigerant : R404a/R22

Control system : PLC+Touch Screen

After-sales Service Provided 1 : Online Support

After-sales Service Provided 2 : Video Technical Support

After-sales Service Provided 3 : on site installation

Price : $11,000.00/sets 1-2 sets

MOQ : 1pc

Contact Now

Product Description

Product Application

Compared with other kinds of ice, tube ice has the highest density which is pure,difficult to melt and completely conforms to food standards.It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh, etc.

1ton 2ton 3ton 5ton 8ton 10ton Industrial Ice Making Machine with R404a/R22 Refrigerant

Main Features

1)Pure German technology and years' research experience in refrigeration.

2)Original Pre-Purify™ patented technology makes ice crystal.

3)All equipment is made of 3D simulation assemble,compact structure, which makes it humanized to operate and maintain.

4)Evaporator adopts SUS304,PE,and aluminum material

5)PLC system controls the ice making process automatically.

Tube Ice Dimensions

Tube ice is a kind of hollow cylindrical ice with external diameter ø21、ø28、ø34mm and length 25～42mm. The hole diameter is usually ø5～10mm and it can be adjusted according to ice making time.

Detailed Images

Machine Parts

Name: Evaporator module

The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting , place the evaporator horizontally and stand it upright when installing .

Main Features

A complete unit with all equipment assembled in a steel frame except its cooling tower for water-cooling or air fan for air-cooling. It's suitable for container shipment, easy to ship, move and install. Right after connecting to an electric and water source, the machine can be put into use

Machine Parts

Name: Ice generator

The main part of the tube ice machine is the ice generator, a vertical shell-and-tube vessel surrounded by a water tank. Special water distributors on top of each tube control an even,spiral supply of water down the inside of the tubes. Expess water is collected in a tank beneath the ice generator and pumped back up to the tank at the top .

Ice Application

Tube ice is widely used in hotels, restaurants, bars, flight kitchens, catering, concrete cooling, chemical industry processing, food production processing, fishing industry and a variety of laboratory and medical applications.

Product Specifications

No	Item	Data
1	Electricity Consumption	68.5kw
2	Installation Power	85kw
3	Condenser Capacity	230kw
4	Operating Weight	7.03MT
5	Equipment Size	2200x2000x1830(LxWxH mm)
6	Refrigerant	R404a/R22
7	Transformer	150KVA
8	Generator	250KVA

About Focusun

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.

Packing & Delivery

Packaging
Size	1800 (L) * 1000 (W) * 1450 (D)
Weight	3000kg
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

FAQ

1.How to choose suitable block ice machine？
Please tell us you need what daily capacity of machine and the weight of per block and your area dimensioin.

2. how can we guarantee quality?

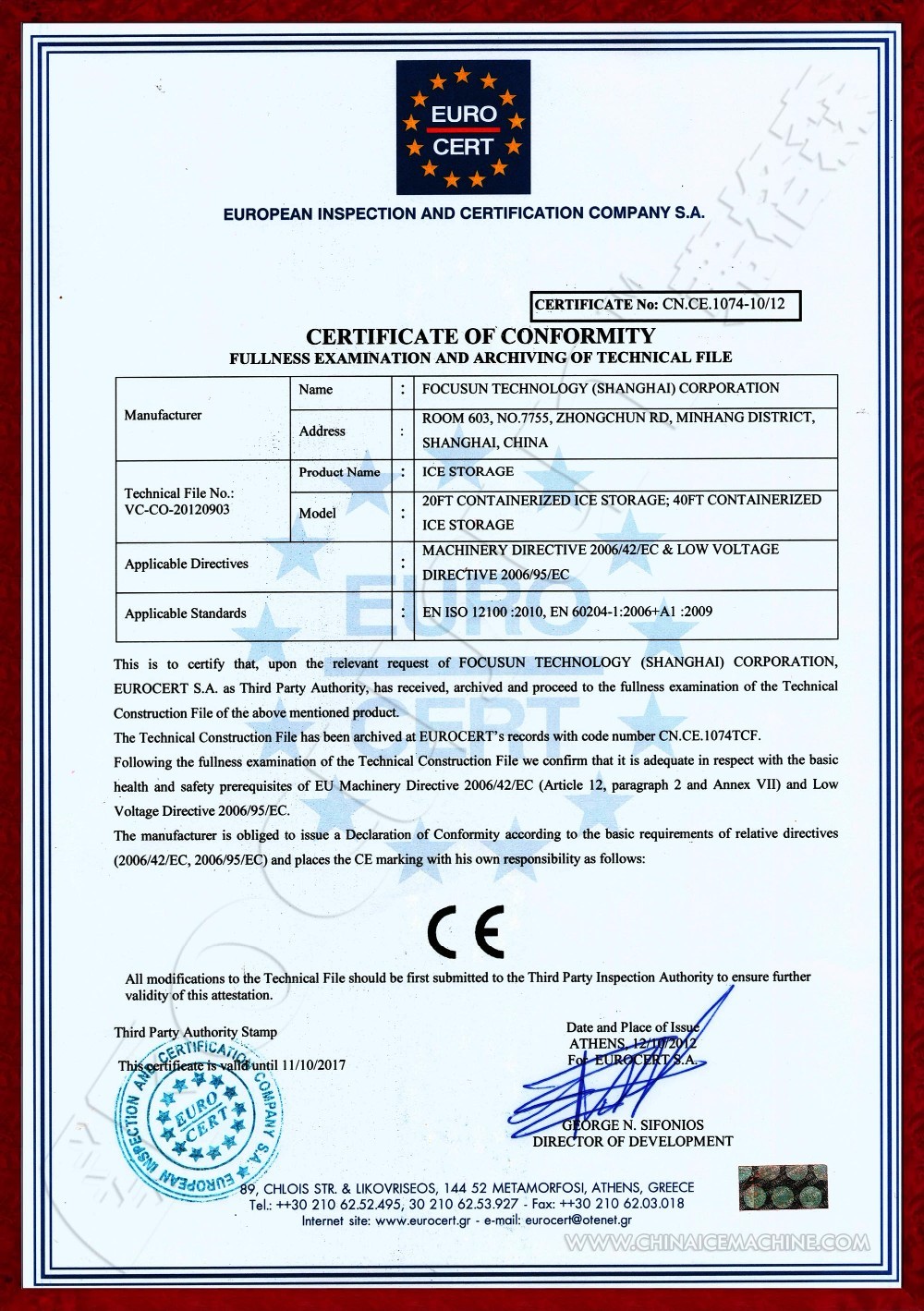

CE,ISO, BV & SGS strictly inspected as per customer requested. Every products pass through good performance test before delivery.

3.why choose us？
Over 80 years of experience of engineering and manufacturing in refrigeration industry; Cost-effective Machines: German Technology Own 18 patented refrigeration technologies.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French
